TG - Intramark

Gumiházas rugós szimering

The TG seals with completely rubber covered outer diameter and the additional dust lip protects the main sealing lip against dust and other fine solid contaminants and therefore this type is recommended for use in polluted environments. This type of seal is designed for pressures up to 0.5 MPa. In order to avoid a “pop-out“ of the seal, we suggest to fit an axial retainer (e.g. circlip, shoulder, etc.) to achieve a long lifetime a suitable lubricant between the two sealing lips should be applied.

Material

NBR 70 SHORE A

carbon steel

spring steel

Media	Mineral oils, Greases
Temperature	-35°C / +100 °C
Pressure	≤0,5 bar
Speed	12 m/s

Product advantages

good static sealing
compensation of different thermal expansion
reduced risk of fretting corrosion
up to 0.5 MPa pressure at moderate peripheral speed
low lip and shaft wear at low pressure run
effective protection against air side contaminants
no need of back-up ring

Application

Sealing of rotating machine elements such as shafts, hubs and axles, transmission systems (e.g. gearboxes), pumps, electrical motors, machinery industry (e.g. tool machines).

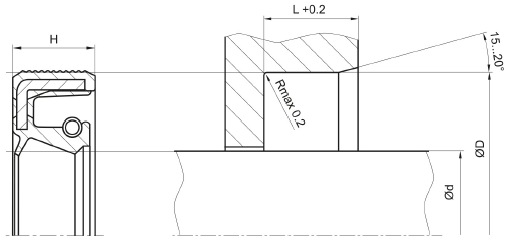

Seal housing tolerance

Ød	f8/h11
ØD	H8

Installation

Suitable tool should be used for installation. It is recommended that the installation housing is designed to provide the rotary shaft seal with axial support.
