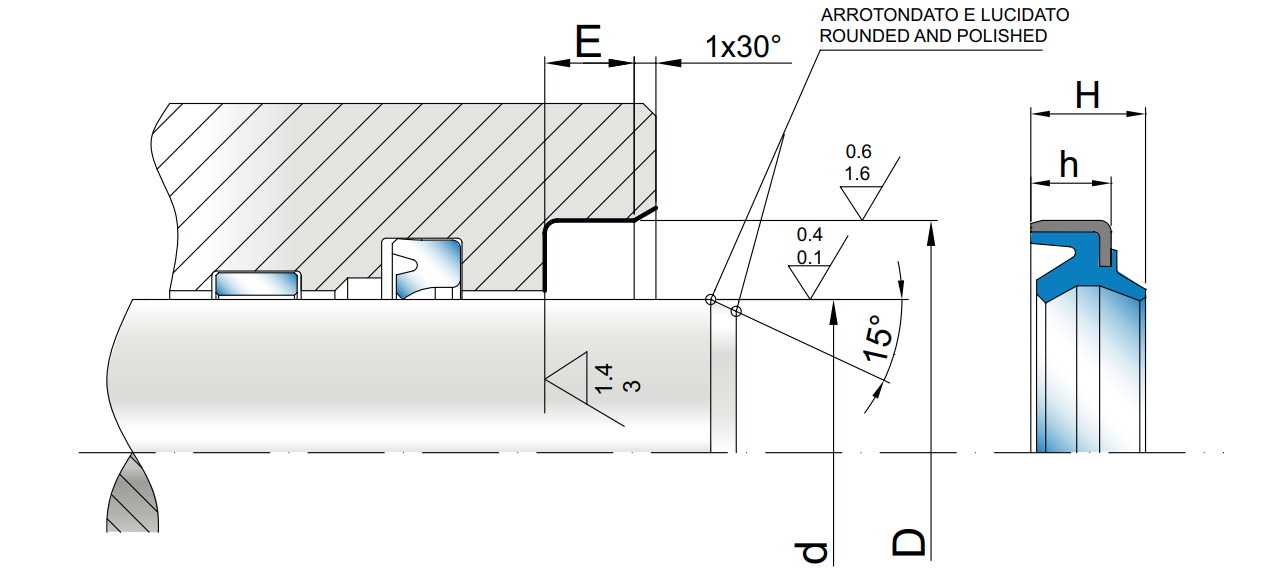

DWP


The DWP wiper is a bi-directional type with metal
cage. Besides the function wiper on the stem has a sealing
lip that works in tandem with the primary seal.
This type of bi-directional scraper is used in
cylinders of earth-moving machines where the effect
is very important when the wiper is in contact with
earth, concrete, ice etc..
• Superior wiping performance
• Used in heavy conditions by the good tear and rupture properties of PU material
• Superior protection against particles in the external environment
• Construction machinery
• Forklifts
• Injection moulding machines
• Standard industrial cylinders
| Material | Code |
| PU | 93° Shore A (CA) |
| SHEET | NORMS DIN 1624 |
OPERATING CONTITIONS
| Temperature | -35 °C +100 °C (Peaks: +110 °C) |
| Pressure | |
| Speed | ≤0.8 m/sec |
