Porvédő nélküli nyomásálló szimering

SCN is a single action rotary shaft seal for rotating. The shorter, thicker, spring-energised sealing sealing lip enables pressure application of up to 10 bar (depending on the rotational speed). The elastomer outer sheath provides good static sealing, good thermal expansion balance e.g. in light-metal housings, better sealing with greater roughness and secure sealing for split housing as well as good static sealing with thin fluid or gaseous media.

Material
NBR 80 SHORE A
carbon steel
spring steel
MediaMineral oils, Greases
Temperature-35°C / +100 °C
Pressure≤10 bar
Speed12 m/s

Product advantages

  •
  •
  •
  •
  •
  •

Application

Sealing of rotating machine elements such as shafts, hubs and axles, transmission systems (e.g. gearboxes), pumps, electrical motors, machinery industry (e.g. tool machines).

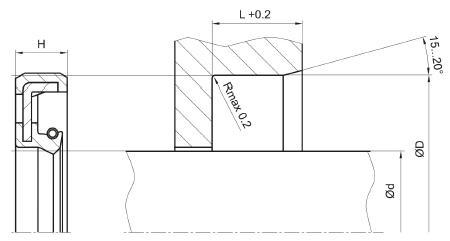

Seal housing tolerance

Ødf8/h11
ØDH8
ØD1H11

Installation

Suitable tool should be used for installation. It is recommended that the installation housing is designed to provide the rotary shaft seal with axial support.

Surface roughnessRa(μm)Rz(μm)Rmax
Groove base ØD≤1.6-6.3≤10-25≤25
Shaft≤0.2-0.8≤1.0-5.0≤6.3
